van spraying crops

COST EFFECTIVE, RELIABLE PUMPS AND PUMPING SYSTEMS

Easy access to clean water is vital for any well run agricultural or horticultural enterprise. Hortech Systems in Holbeach, Lincolnshire can design, supply and install a range of pump systems. We provide comprehensive services, from the supply of single pump units to a complete design and installation service. If you are looking for pumps sets, filtration units, water treatment systems, fertiliser injection systems or water storage tanks, we can help you. Our quality equipment and wide product range will help you cut costs and maximise your crop yield.

Contact Hortech Systems Ltd in Spalding.

Free quotes
Quality products

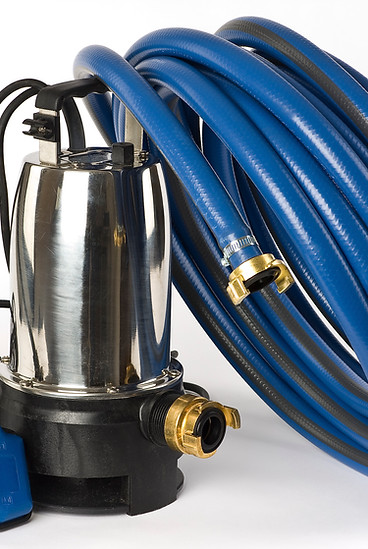

Sump pump and water hose

Multistage pumps and pressure vessels

Our vertical multistage pump systems are designed for maximum reliability and almost noiseless operation. These systems are suitable for pressure boosting, sprinkler irrigation and wash down duties. Durable stainless steel is used for impellers and housings on all models. Pressure vessels available in sizes ranging from 5ltr to 500ltr. The maximum pressure rating ranges from 5ltr to 50ltr 8 bar and 100ltr to 500ltr 10 bar. Certification to BS4814 is available upon request.

DECADES
OF
EXPERIENCE

Submersible pump systems

Hortech Systems Ltd supplies and installs the VORTEX submersible pump system for sewage water. VORTEX systems are supplied with a transport handle, float switch and a cable with plug. The discharge body and upper mounting come in grey cast iron. Complete with anti-corrosive treatment. These units have a polycarbonate impeller that allows for the free passage of particles in suspension of Ø35mm. Filters are housed in rigid plastic with the motor housing and transport handle set in stainless steel.

Water pump station and pipeline on roof deck of water tank for industrial work

4” bore hole submersible pumps

Our 4” bore hole submersible pumps are multistage pumps submersible for up to 250 metres. The external housing, upper chambers and motor supports are all manufactured in stainless steel. The impellers and diffusers are fabricated in polycarbonate. Powerful PSC Motors by Franklin Electronic are fitted to each unit. All single-phase submersible pumps are supplied complete with a control box. Flow rates are up to 280 ltr/min.

submersible pump
Hydrovar hydraulic pump system

Hydrovar
New variable speed control system for hydraulic pumps

Hydrovar is the world’s first pump mounted, microprocessor-based pumping system controller. The Hydrovar does much more than just change the motor speed; it manages your pump’s performance across a wide range of system conditions and requirements, allowing energy savings of up to 70%. By combining this system with conventional hydraulic pumps, Lowara have created an extremely versatile range of pumps for use in HVAC, water supply, irrigation, filtration, pressure wash, boiler feed, circulation and a range of OEM applications.

The Hydrovar variable speed controller can be mounted or retrofitted to any existing centrifugal pump or fan that has a standard IEC motor. The units are available in powers from 0.37 Kw to 525kW and can be wall mounted or mounted directly onto the pump motor (horizontal or vertical).

The Hydrovar can also be connected by cable to another microprocessor control system using the RS-485 database on the main terminal board. This enables the Hydrovar system to send information about system conditions to an external unit and to be controlled from a distance. The Hydrovar is applicable to the Enhanced Capital Allowance Scheme.

Do you need quality pumps and pumping systems?

Contact our pump system specialists at Hortech Systems Ltd in Spalding. We also supply water storage tanks and reservoirs.

0800 316 0532

Enquiring about...
Pump room at a pumping station
